Image for reference

Technical Datasheet Download Datasheet
230/400Vac 230/400Vac
AC: type II AC: type II
Active Power Adjustable Range 0~100%
AFCI No
Allowable Relative Humidity Range 0~100%
Ambient Temperature Range -30??C~+60??C
Anti-Islanding Protection Yes
Application Commertial Rooftop Solar
Brand Sofar
Category String Inverter
Communication RS485/WiFi
Cooling Smart air cooling
DC Reverse Polarity Protection Yes
DC Switch Yes
Display LCD & Bluetooth +APP
European Efficiency 0.982
Inverter Type On-Grid
kW 40
Leakage Current Protection Yes
Max. Apparent Power 44000VA
Max. Efficiency 0.988
Max. Input MPPT Current 4*40A
Max. Input Short Circuit Current 4*50A
Max. Input Voltage 1100V
Max. Operating Altitude 4000m
Max. Output Current 66.7A
MPPT Operating Voltage Range 180V~1000V
Number Of DC Inputs 2 for each MPPT
Number Of MPPTs 4
Output Frequency Range 45Hz-55Hz/55Hz-65Hz
Output Voltage Range 310Vac-480Vac
Phase Three
Power Factor 1 (adjustable +/-0.8)
PV-Array String Fault Monitoring Yes
Rated Input Voltage 620V
Rated Output Frequency 50/60Hz
Rated Output Power 40000W
Rated Output Voltage 3/N/PE
Self-Consumption At Night <3W
SPD PV: type II
Start-Up Voltage 200V
Sub Category C&I
THDi <3%
Topology Transformerless

Massage Icon Report an issue with this product

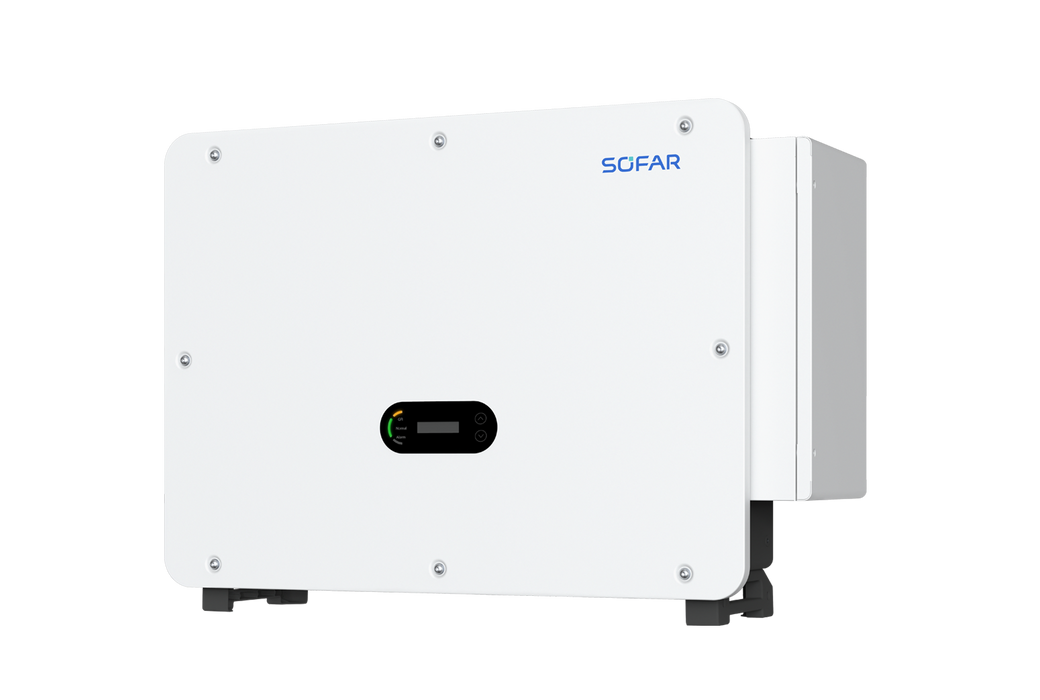

Sofar 3-Phase On-Grid Inverter, G4 Series
Warranty:- 5 Years
Dimension (W??H??D):- 585??480??220mm
Weight:- 37kg,
Country of Origin:- China
Packaging Type:- Box
